Zambia 25TPH Rock Copper Process Plant

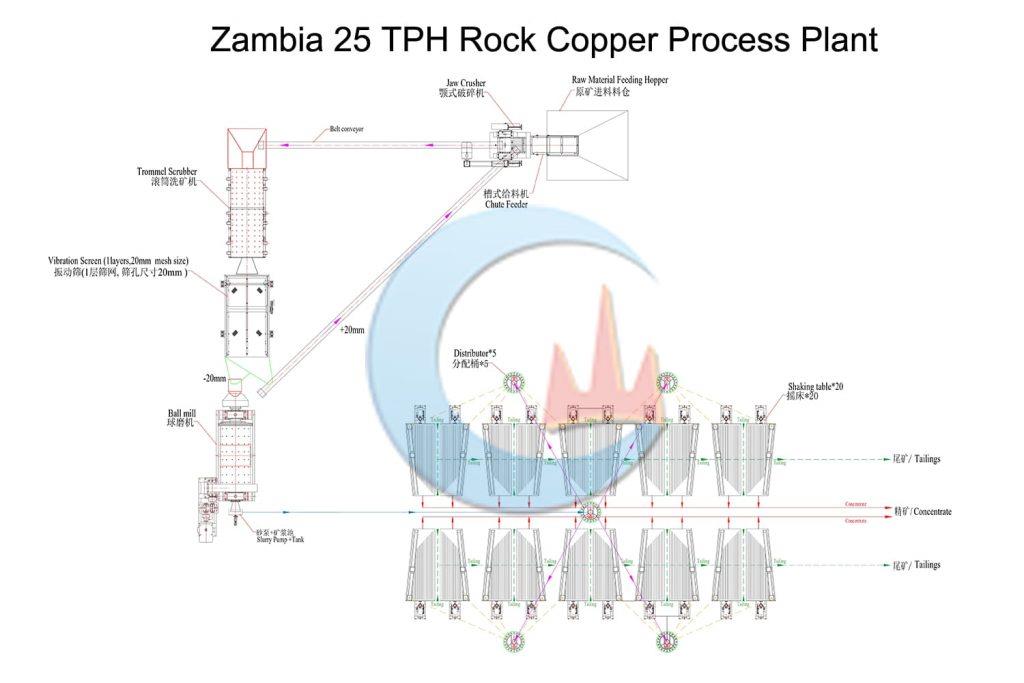

JXSC has provided a 25TPH copper processing plant in Zambia. We design the rock copper process plant flowchart and plant layout drawing according to the mineral ore's conditions and offer a complete set of plant machines. We also send the engineer to the site to install and debug the machines.

25TPH Rock Copper Process Plant Project Case

Introduction

Minerals:Rock Copper
Capacity:25TPH
Process:Feeding -> crushing -> washing -> screening -> Grinding -> Gravity Separation

Solutions & Process

Copper Processing Plant

chute feedersends the raw material to jaw crusherfor crushing. Use a belt conveyor to send the crushed material totrommel scrubber. The material from the scrubber goes tovibration screen(The screen is one layer with 20mm holes). The above 20mm material returns to the jaw crusher for crushing and the -20mm material is sent toball mill. The material after ball milling enters the slurry pool. Then use the slurry pump to send them to the distributors, then they enter intoshaking tables. After the shaking table beneficiation, we can get copper concentrate.
