Impact Crusher

Capacity:30-500 tph

Feeding Size:<700mm

Process Material:A variety of medium hardness ores, such as limestone, feldspar, calcite, talc, barite, rare earth, clay, kaolin, dolomite, kaolin, gypsum, graphite, etc. 7

Impact Crusher Overview

An impact crusher (impact break) is an ideal crushing machine for medium hardness materials, it can produce a more uniform particle shape (cubical) final product compared with the hammer crusher. Impact crushers are widely used in the aggregate industry (cement, asphalt, sand & gravel), owing to high reduction ratios and precisely shaped, cubical end products. Impact crushers can be set in any stage of the crushing circuit from primary crushing to the last step of the crushing process.

Impact Crusher Types
Common types have horizontal shaft impact crusher (HSI) and vertical shaft impact crusher (VSI). Besides, designed stationary and mobile impact crushers (track, wheel) for different applications.

Advantages

Impact Crusher Advantages

·Broken than large, generally for 30 to 40, the largest up to 150.

·High grinding efficiency, and low power consumption.

·Product granularity and less crushing phenomenon.

·Can selective crushing.

·Adaptability can be hard brittle broken, fibrous, and the following material, especially suitable for brittle material breakage.

·Equipment, small volume, light quality, simple structure, easy maintenance.

Structures & Working Principle

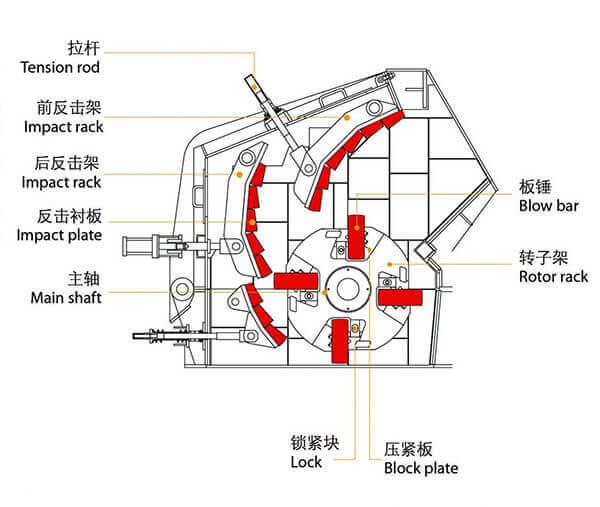

Impact Crusher Structure
The main parts of a impact crusher are hopper body, cascade cylinders, feed tubes, crushing chamber, crusher base; often replaced wear parts are worn plates, blow bars, breaker plates, etc.

impact crusher structure
