Roller Crusher

Capacity:2-140 TPH

Feeding Size:<150mm

Discharge Size:2-50m

Process Material:River pebble, granite, basalt, iron ore, limestone, quartz, gangue, and so on.

Roller Crusher Overview

The Doule Roller Crusher, also known as roll crusher, toothed roll crusher, is suitable for fine crushing the medium hardness rock with compressive strength ≤160MPa, such as ore, rock, coke, coal, clinker, ceramic raw materials, slag, refractory materials, and chemical materials.

Roller Crusher Types
According to the number of rolls, the roll crushers can be divided into single-roll crushers, double-roll crushers, and four-roll crushers. A double-roll crusher is the most used type. We produce industrial roller crushers and the laboratory uses a small roll crusher.

Advantages

Roller Crusher Advantages

·Replacement wear-resistant lining, long service life, convenient maintenance.

·Compact structure, lightweight, small size, for the same production capacity requirements of the crushing system, equipped with roller crusher can significantly save investment.

·The width of the discharge opening can be adjusted to determine the crushed material size.

·High reduction ratio, low vibration, dust removal, and less noise.

·High efficiency, low consumption, uniform granule, good granule shape.

Structures & Working Principle

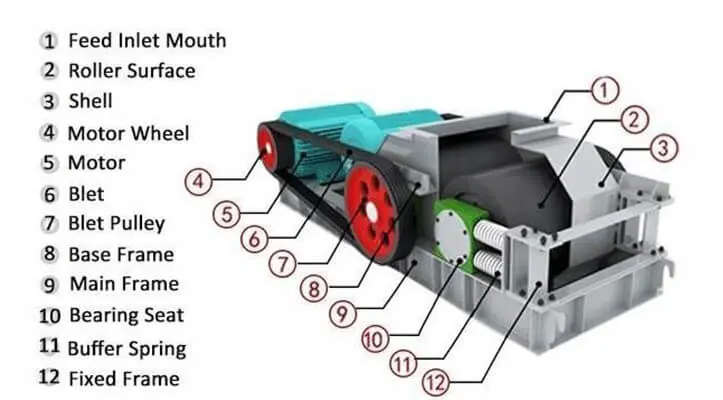

Doulbe Roller Crusher Structure
The main parts of a roller crusher are Bearing box, roll shell, bearing housing, adjusting rod, motor, carrier, fixed roller, movable roller and safety spring, etc.

double roller crusher structure
